Note: This model is recommended for builders with experience in resin kit assembly

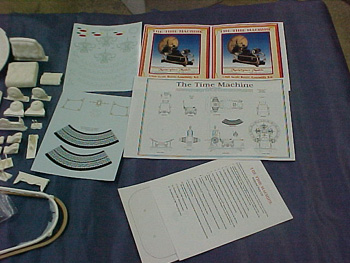

There is a 7 page written set of Instructions for assembling the kit (no illustrations) and an 11x 17 print of Chris Perrotta's drawing for reference.

Ordering information

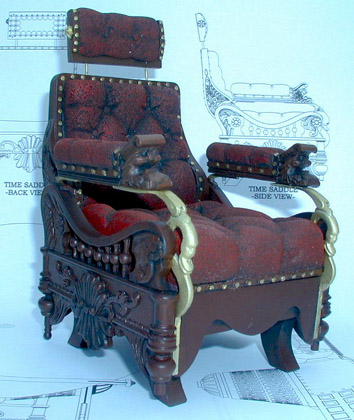

Photo of completed chair from Masterpiece Models
for one of the assembled models

Side closeup

Full side view

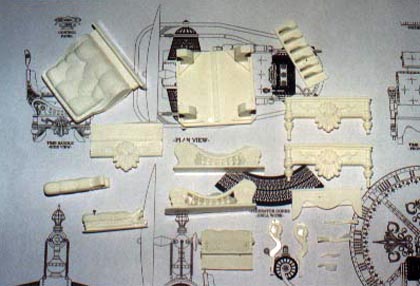

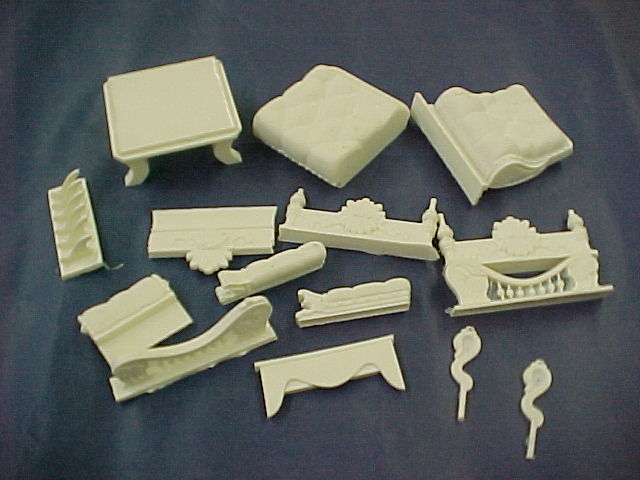

The components of the chair, seat cushion pictured below

Headrest, swan's head and brackets

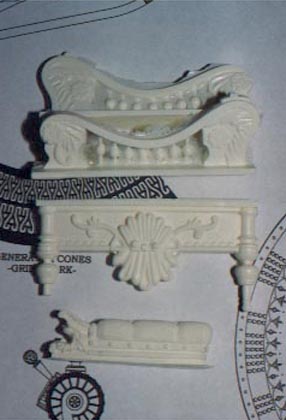

Chair side parts and arm rest

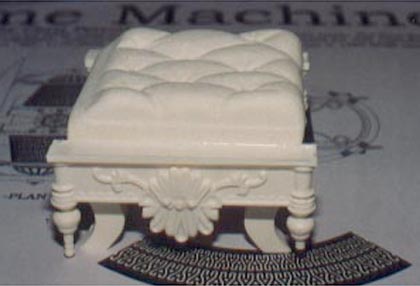

Seat cushion placed on chair bottom and side
attached to see how these parts look together

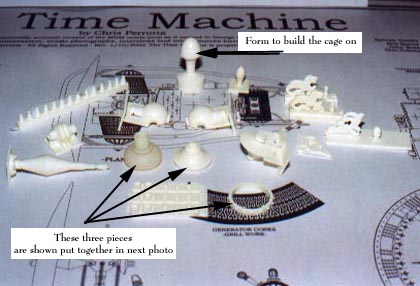

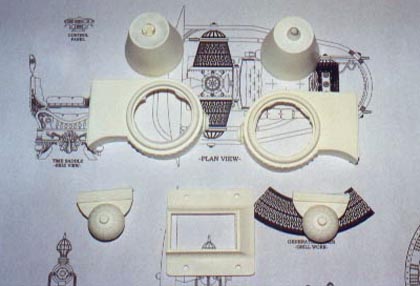

Engine Housing components

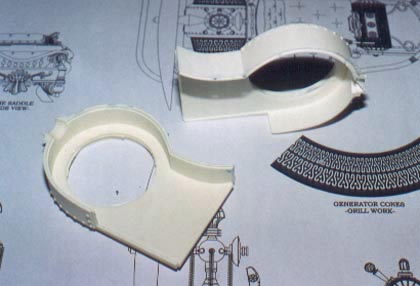

Left and right sides of engine housing.
The seam has an overlap not a butt joint

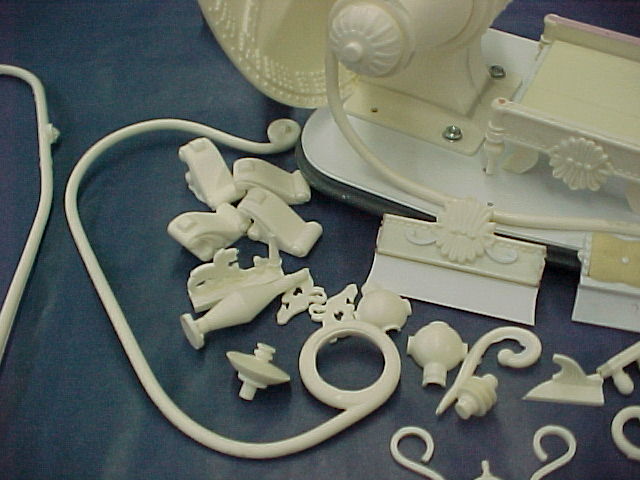

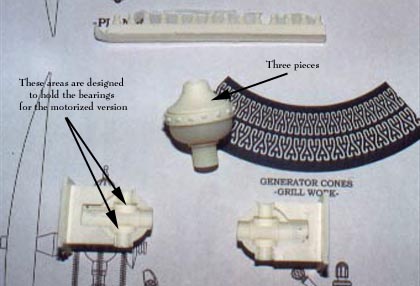

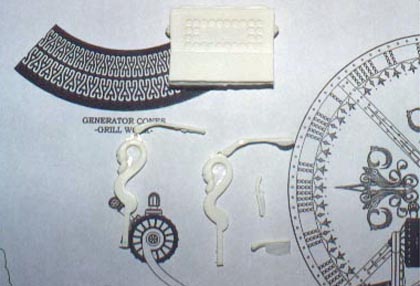

Drive shaft parts and rail end flurishes

Detail of inside ball and 'lamp base'
Insulators at top

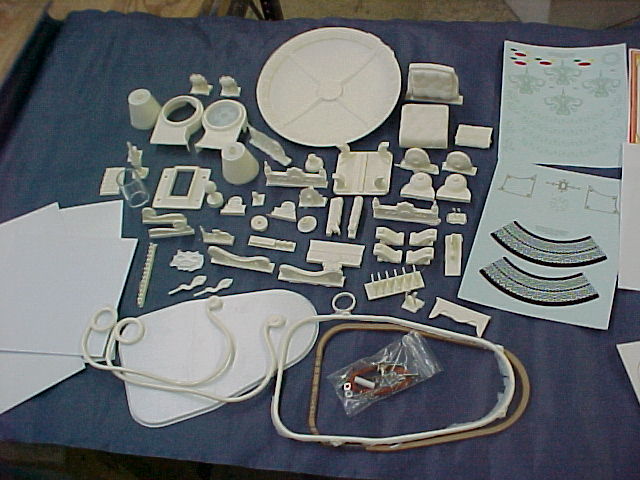

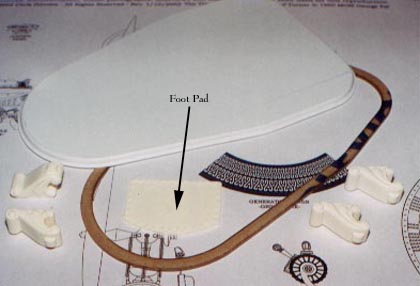

The feet of the base, foot pad and two of the components for the base. Sheets of styrene are also included for additional base layers.

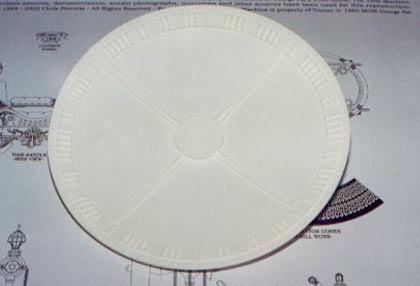

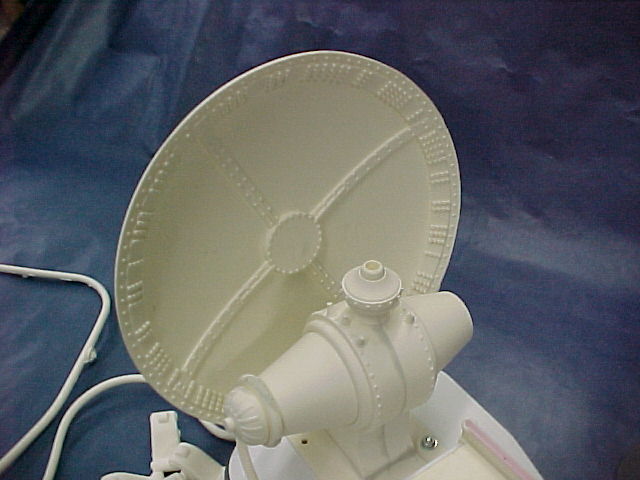

Dish

Clear acrylic tube is provided for the console, slot is cut for the lever.

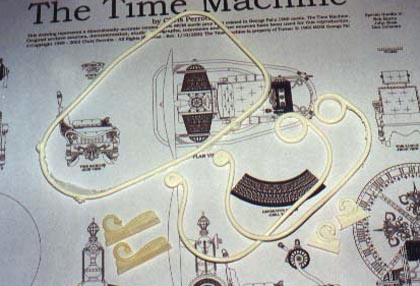

Rails
Click on photos below to see enlargements
