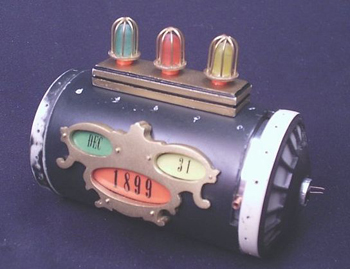

Almost completed! The Time Machines Control box with the caps in place and all the parts mounted. Some clean up and sanding was needed so I will carefully mask the caps and the brass parts and re-paint. | |

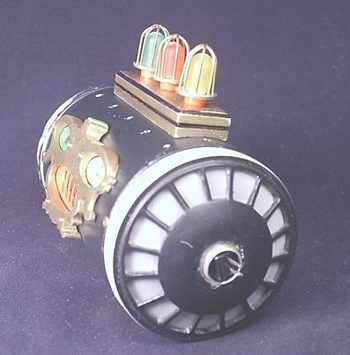

Here you can see the male connectors that will hook up to the female Sockets on the side rails. I needed something small and reliable so I used eight pin IC sockets from Radio Shack To make these, I just cut them into Small groups of two pins. Right now they are stuffed just inside the opening.This side is the motor control wires the other is power in. | |

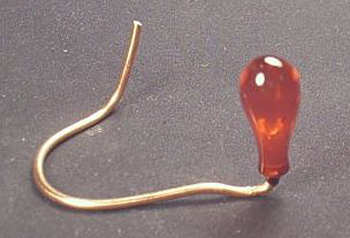

The Time Machines
POWER LAMP that sits on top of the Time Generator. I turned an ½ inch
acrylic rod piece in a 18V cordless drill using wet/dry Sand paper 150
to 1800 grit under a running faucet in the bath sink, leaving a frost
type finish then coating it will Thick layer of Tamiya acrylic clear red.
|
|

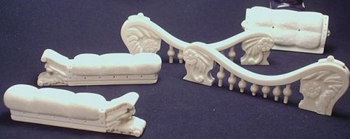

Chair Parts
that have been cleaned up, sanded and ready for assembly. Masterpiece
Models did an excellent job on this kit and the chair alone can be displayed
as a model! 99.8 % of the upholstery pins came out just fine But at 1/6th
scale I wanted a cleaner look so I decided to use various finish Nails.
|
|

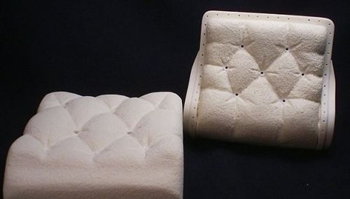

In this photo
you see the two main cushions with holes drilled for the upholstery buttons.
Red carpet flocking you can get for 1/24 scale model cars works Perfect
for the cushions!
|
|

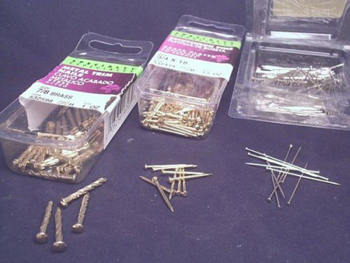

Various pins
and nails that will be used on the Chair and as the rivets On the Time
Generator.
|
|

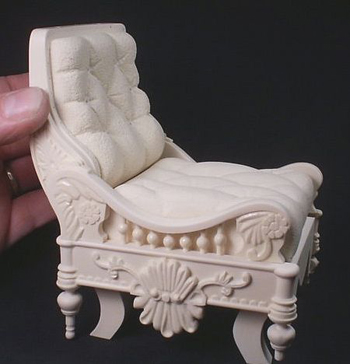

A 1/1 scale hand holding the Chair together just to show it Before painting and assembly. | |

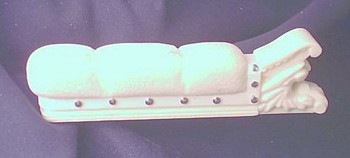

For this picture some of the pins were put in place along the right chair arm rest. |
